The Angle Mounted Adjustable Bag Rider (Patented) is designed to bolt directly to the bottom of the MDT stocks (and some Savage) that have an Angled mounting surface. There must be a mounting SLOT in the bottom. Made in the USA!

Two lower rider options are available - the V and ELR. The ELR base is .850” wide. The ‘Bag Selection’ page goes over the lower rider differences. The ABR™ provides rock solid stability, straight tracking and vertical adjustment. The ABRs are CNC machined from USA made 6061 Alum, Anodized Class II Black and weighs 12-14 oz . There are four mounting holes providing the options to cover stock variations - select the two mounting holes farthest from each other. A 5/32 hex wrench will be needed to install the supplied bolts. The ABR™ provides about .95” of travel for the short dowel and 1.48” for the long dowel. Older models stocks ‘without the slot’ will need machining to add the 1/4” bolts through the stock.

• A new ‘Quick adjustment’ thread option (Coarse thread) is available for PRS, Hunting - use requires Hardened Dowels

If you do not see your rear stock listed below there are Two pics that show the measurements needed to verify if the stock will accept the long dowels. If you are unsure please use the contact button and send picture of the rear stock.

ACC Premier Gen 1 - requires the Angle mounted ABR (see below list)

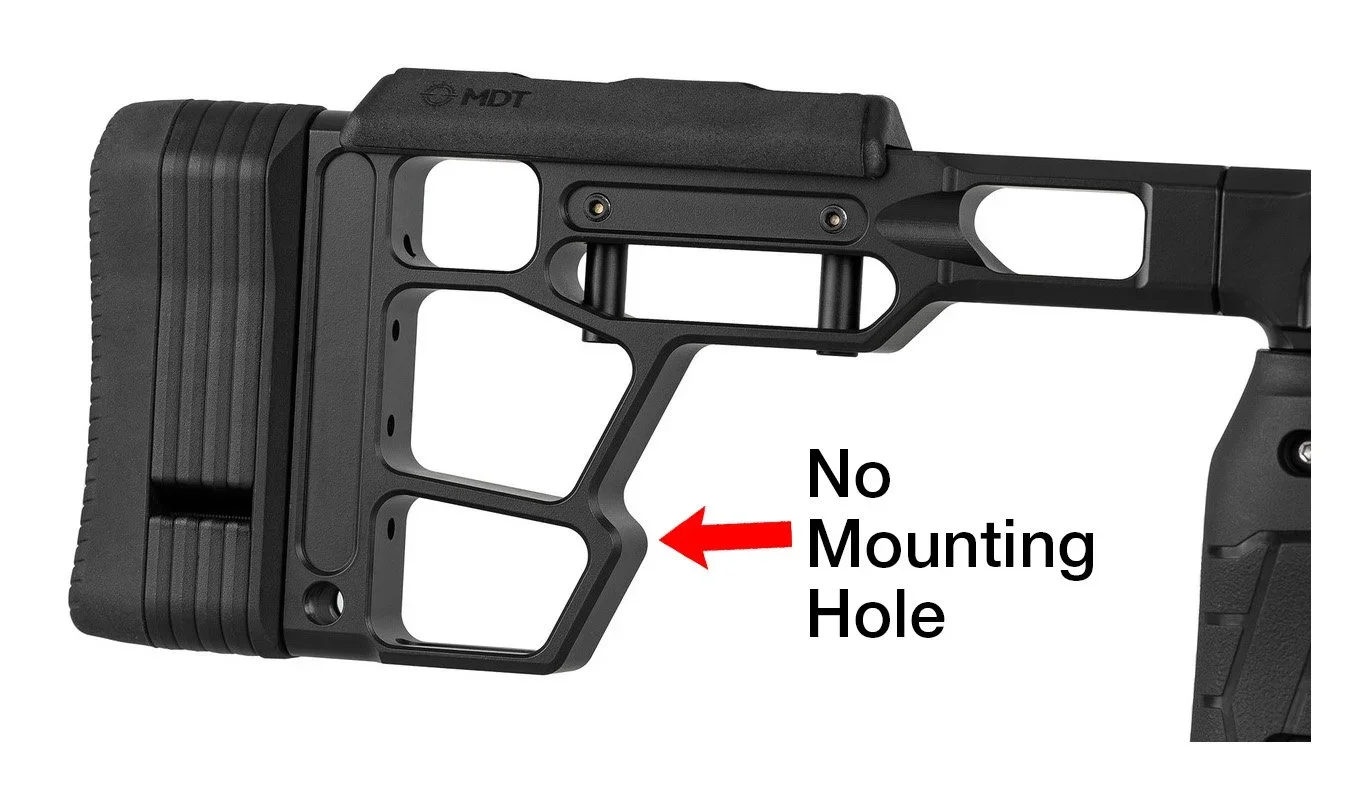

Premier Gen 2 (there is NO side screw for locking in a lower bar in this stock) Click here

DOES NOT FIT THE NEW ACC ELITE with lower support bar that attaches to the grip (even if you remove the bar). See the "Installs" Page or the “Blank” ABR for options

Bolt On application and Dowel Length:

• ACC - Non-folding -Long Dowels

• ACC - Folding stock- Short Dowels

• ESS - Non-folding - Long - Dowels

• ESS - Folding stock - Short Dowels

• SRS - Skeleton Rifle Stock - Short Dowels

• LSS-XL - Short Dowels

• SRS-XF - Short Dowels. (not the Premier)

• Tactical - LSS Gen3 kit

• SCS-Lite - Long Dowels (The shorter tube length may require the Folding Stock Adapter to increase LOP- or a longer tube)

• SCS - Long Dowels (The shorter tube length may require the Folding Stock Adapter to increase LOP- or a longer tube)

• Savage Impulse Elite Precision - Long Dowels

• 110 RF Elite Precision - Long Dowels

• Colt CBX - Long Dowels

• Faxon FX7 - Short Dowels

• CZ 457 Chassis MTR

• HTI Milano - using MDT rear stock

• Rival-Arms ST-3X - rear stock (see picture near the bottom)

• Modification Required:

• Savage B22 & B17 - Long Dowels - Minor modifications are necessary as M-lok nuts and bolts will be required and the counter sinking of the heads on the bottom of the ABR will be required for a flush mount. (See Picture)

• Foundation Stock - with the Bag Hook - Short Dowels - both mounting and clearance for dowels and stud needed

Caliber Restrictions:

• .338 and smaller calibers will use the Standard Dowels

• .33XC and larger need the Hardened Dowels

• PRS use requires Hardened Dowels

  FAQ’s

  “Which Option do I choose?”

  • Angle Mounted ABR top section is the same for all. Only the dowel & stud lengths are different.

  “Which lower rider (ELR or V) do I choose?”

  • The ELR is .85” wide and .5” tall the V bottom fits a 2 stitch bag. The ‘Bag Selection’ page goes over the rider shapes in detail.

    “Which DOWEL Material do I choose?”

  • .338 and smaller calibers will use the StandardDowels

  • .33XC and larger needs the Hardened Dowels

  • PRS requires the Hardened dowels

    Which Thumb Wheel thread do I choose?

  • Fine Thread (standard) - bench rest, ELR

  • Coarse Thread - PRS and timed events when faster movement is needed

    Which Adjustable Grip is suggested?

  • A Vertical Adjustable Grip provides the maximum spacing behind the grip

Rear weight will need to be modified to clear the bolt heads - a dremel can be used (see pic)

Please note that this product does not fit anything other than the MDT / Savage with a MOUNTING SLOT.

Non-Affiliation Disclaimer. We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Modular Driven Technologies or Savage brands .

Rail Mounted Adjustable Bag Rider (Patented) designed to clamp to a lower picatinny rail. It provides the same superior precision and stability as the other ABRs. It ships with the LSP made 2 hole Rail Clamp and 10-32 bolts(torque to 18 inch pounds -5/32” allen wrench). The ABR™ has about .95” of travel with the short dowel and 1.48” for the long dowel. Sealed linear bearings provide a perfectly smooth and consistent operation. The ABRs are made in the USA -CNC machined from USA made 6061 Alum, Anodized Class II Black and weighs 12-14 oz. As more rifles or rear stocks are identified as a direct bolt on application the list will be updated. Below are rifles and stocks that have a ‘Direct Bolt on Application’. Please use the “Contact Us” button if you have suggestions or questions. NOTE : RPRR minor Modifications are REQUIRED

• A new ‘Quick adjustment’ thread option (Coarse thread) is available for PRS, Hunting - use requires Hardened Dowels

See the Bag Selection page for information on the lower “Rider” shapes and how they fit a bag you may have.

Direct Bolt on Applications and Dowel lengths:

Tikka T3X TAC A1 (Short Dowels ) - DOES NOT Fit the Tikka ACE ←— click for Tikka ACE

Christensen Modern Precision Rifle and Rimfire (Long Dowels-you must order the picatinny rail from Christensen Arms)

Accurate Mag -Sport-Tact Chassis Butt-stock - (Long Dowels) - Vertical Grip required

RAPS – FAB Defense Stock (Long Dowels)

GRS – WARG and Bifrost -Long Dowels (picatinny rail required)

Daystate Delta Wolf (Short Dowels)

Gunnar PCP - Air rifle - (Short Dowels)

Ghost - Brocock Carbine - (Long Dowels)

BRK Ghost - (Long Dowels)

Magpul CTR -(Long dowels) ‘AR Mounting bracket’ Required

CZ600 Range -Short Dowels

Oryx chassis “Howa” (Long Dowels) mount the M-lok pic rail to the slot on the bottom of your stock (If you don’t have a slot the ‘Flat Mount ABR’ can be mounted – if you drill and tap holes into the stock – contact us first - I’ll walk you thru it) The M-lok ABR will bolt directly to the slot.

Samson - SAS-K & SAS 22 (with lower pic rail) — (Long Dowels)

CZ457 - 22LR - (Short Dowels) - see image

Accurate Mag Chassis - for RPA - Long dowels

Howa TSP-X - (Short Dowels) -order the pic rail from the Australian company that makes the frame.

Southern Cross Small Arms (SCSA) - (Short Dowels) - factory pic rail is required. Vertical grip is required.

B&T APR308 308 PRO Sniper Rifle - (Short dowels)

Huglu Ovis - B08 - Long Dowels

Modifications required:

Luth-AR – (SEE PIC) the stock has to be modified (Long Dowels)

Target Tool (Short Dowels) Modifications are necessary (Contact us)-Vertical Grip required

FX - Impact and Maverick (see the ‘Installs’ page)

Ruger Precision Rifle Rimfire (Short dowel) –Modifications Required see below (Drawing included for RPRR in thislink)

(Drawing included in the below link- click on below)

Read more about the Rail Mounted ABR

Please note that this product does not fit the Ruger Precision Rimfire Rifle without modification. It does not fit the Ruger Precision Rifle or Magnum.

Caliber restrictions:

• .338 and smaller calibers can use the Standard dowels

• .33XC and larger needs the Hardened dowels (Black Oxide Finish)

• PRS needs Hardened Dowels (Black Oxide Finish)

FAQ’s

“Which MODEL do I choose?”

• Rail Mounted (RM) ABR™ top section is the same for all. Only the dowel & stud lengths are different.

“Which DOWELS do I choose?”

• .338 and smaller calibers will use the StandardDowels

• .33XC and larger needs the Hardened Dowels

• PRS needs Hardened Dowels

The Universal Rail Mounted ABR™ (Patented) has been designed to mount directly to the lower picatinny rail, it is supplied with the LSP™ made 2 hole rail clamp. Also available is a LSP™3 hole rail clamp. Having one longer dowel provides the same precision and stability as the other ABRs with .950” of travel. 2 linear bearings provide consistently smooth adjustment without wobble or binding. Both short dowels provides .68” travel. Made in the USA from American 6061 Alum and finished with Class II Anodizing they are 12.6oz including the clamp and bolts. The ‘Bag Selection’ page goes over the lower rider which is .850” wide.The unit is 2.25” tall when closed. The unit is ordered with either standard dowels or hardened dowels for larger calibers or PRS use - see caliber restriction below.

• A new ‘Quick adjustment’ thread option (Coarse thread) is available for PRS, Hunting - use requires Hardened Dowels

• 1.5” Diameter thumb wheel for heavy rifles & .50cal (standard Thumb Wheel is 1.3”) available with Hardened Dowels only - the +1.5” identified in the drop down box

Accuracy International -Length Of Pull (LOP) To maximize space behind the grip the longer dowel will either be in Front of the ABR™ or in-between the stock and recoil plate in the Back of the ABR™ - See first two pictures

• AIAX - LOP closed or 1 click out AIAX-Long-Front” dowel

• AIAX - LOP open 2 clicks (or more) “AIAX-Long-Back” dowel

• AXMC - LOP closed or 1 click out AIAX-Long-Front” dowel

• AXMC - LOP open 2 clicks (or more) “AIAX-Long-Back” dowel

• AXSR - LOP closed to the #6 “Long Front Dowel”

• AXSR - LOP =#7 or more “Long Back Dowel”

• AT-X - may require a more vertical grip “Long Front Dowel”

• AT-XC - “Long Front Dowel”

• MDT Elite - Long Front dowel - M-lok rail required (see last picture)

• Magpul PRS - “Long Front Dowel” (NOT for PRS3)

• B5 Systems- Collapsible Precision Stock - Long Front dowel

• McRee Chassis - "Long Front dowel"

• Cadex - CDX - Strike Pro - “Long Front Dowel” or see the Installs page - Installs

• SCAR S20 - requires the “Long Front dowel”

• RAW HM1000x - Air rifle will require the “Long Front dowel”

• FN Ballista will require the “Long Front dowel”

• Unique Alpine TPG-3 - will require the “Long Front Dowel”

• M40A6-Please contact Long Shot Precision -using the Contact button below

• Steyr SSG M1 & SSG M1A2 - “Long Front dowel”

• Victrix Challenge - you will need the picatinny rail from Victrix “Long Front Dowel”

• Victrix Venus Pro - “Long Front dowel”

• KRG WHISKEY-3 - you will need the picatinny rail from KRG “Long Front Dowel”

• Sako TRG M10 - either the “Both Short” dowels or Long Back if LOP opened (See image)

• Sako TRG 22A1 -either the “Both Short” dowels or Long Back if LOP opened (See image)

• Q Fix Stock - Add a Pic Rail and the “Long Front Dowel”

• AB Arms rear stock - “Long Front dowel”

• Daystate Alpha Wolf - requires ‘Both Short’ dowels

• Daystate Red Wolf Chassis - “Long Front dowel”

• Rapid Air Worx (RAW) MicroHunter - “Long Front dowel”

• Panthera - “Long Front dowel”

• Gunnar PCP - “Long Front dowel”

• Boyds - AT-One - with pic rail insert (Boyds item A09105) - “Long Front dowel”

• Target Tool - check if adding 2.25” under the stock is acceptable - “Long Front Dowels”

• Both Short dowels - will mount below any surface as the pic rail is the highest part = .680” travel

Caliber Restrictions:

• .338 and smaller calibers will use the Standard dowels

• .33XC and larger need the Hardened Dowels

• PRS needs Hardened Dowels

If you do not see your chassis listed please use the Contact link and send a picture of the rear stock (from recoil plate to grip) .

The Flat mount ABR™ (Patented) will directly bolt on to the MPA BA Comp, Hybrid, ESR and Bergara Premier Competition with an MPA Chassis models and it is supplied with the proper length bolts (short dowels). The two step aluminum cross stud (called the Bag Rider Barrel) will be used and the ‘longer’ front mounting bolt - it will go up into the front slot of the ABR. The shorter bolt goes up into the rear slot. While ABR™ is opened start the two supplied bolts with your fingers - finish tightening with an Allen wrench. DO NOT take apart the ABR. There is a short 1/4-20 bolt installed in the ABR that has to be removed for applications other than the MPA chassis.

• A new ‘Quick adjustment’ thread option (Coarse thread) is available for PRS, Hunting - use requires Hardened Dowels

The ‘Bag Selection’ page goes over the lower rider differences - ELR & V.‍ ‍The ABR™ has linear bearings that provide the ultimate in smoothness with zero wobble. The ABR™ provides about .95” of travel with the short dowel and 1.48” with the long dowel. Made in the USA from American 6061 Alum and finished with Class II Anodizing they are 12- 14oz.

DOES NOT FIT the MPA BA COMP PRO —→Click here for Comp Pro ABR

Caliber restrictions for dowels:

• .338 and smaller will use the Standard dowels

• .33XC and larger will need the Hardened Dowels

• PRS use requires Hardened Dowels

Direct Bolt On application:

MPA BA: Competition, Hybrid, ESR, Evolution, Lite, and Bergara Premier - Short Dowels (The Long dowels will require milling)

MPA Ultra Lite Chassis - Long Dowels (No mods needed)

MPA Hunter - Longer dowels (No mods needed)

MPA BA PMR - Longer dowels (No mods needed)

Modifications Required:

MPA BA: Competition, Hybrid, ESR, Evolution, Lite, Ultra Lite, and Bergara Premier-to fit the Longer dowels the rear dowel will have to pass into (not thru) the stock so milling a pocket is required (See pic with BLACK stock) or see the Installs page

ORYX Chassis -(Long Dowels) If your chassis does not have the slot for the M-Lok - we suggest to reduce height added to the rear stock- that you directly bolt onto the lower stock without adding a picatinny rail. Since machining to your stock is required either way to add the bolt holes (for a Rail or ABR direct mount) the Flat Mount ABR has two small slots and counter bored areas for the bolt heads to be recessed. See pic to left of ORYX chassis with Flat Mount ABR. If you do have a M-lok slot the Rail Mounted ABR‍ ‍is what you need.

XYLO chassis - (Short Dowels) The lower rider (part of the stock) will need to have 2 bolt holes added to mount the Flat Mount ABR (which already has 2 small counterbored slots).

Sig Cross- The rear stock must be modified to fit the ABR and the holes milled in the ABR to clear 10/24 bolts. Please contact us for details. The LOP plate must be modified to clear rear dowel. See pic and ‘Installs’ page

MPA Matrix - Custom installation (milling required) see picture and ‘Installs’ page

Tubb Rifles - (Long Dowels) please contact us

Daniel Defense Delta 5 Pro - See the “Installs” page

APAC Chassis - from JP Rifles - See the “Installs”page

Bergara BMP - See the “Installs” page

Please note that this product does not fit all MPA stocks. Will not work with “Modular Weight Tuning Kit”.

Non-Affiliation Disclaimer. We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the MasterPiece Arms Holding Company brand.

The Tall Rail Mounted Adjustable Bag Rider (Patented) designed to clamp to the lower picatinny rail on the MRAD, MK22, M98(newer models) and others listed below. The rear stock must look like the provided pictures. It provides the same superior precision and stability as the other ABRs. The ABR™ has about .95” of travel with the short dowels. It ships with the LSP made 2 Hole Rail Clamp (torque to 18 inch pounds -5/32” allen wrench ). A 3 Hole Rail Clamp is available. Made in the USA!

We recommend 2.25” minimum between the front of the ABR and the back of the grip so a more vertical grip is recommended for the Barrett. See the LSP Precision Vertical Adjustable Grip.

See the Bag Selection page for information on the lower rider shapes (ELR or V) and how they fit a bag you may have.

• A new ‘Quick adjustment’ thread option (Coarse thread) is available for PRS, Hunting - use requires Hardened Dowels

MRAD, MRADELR, MK22, M98, SMR - all use the Short Dowel & a Vertical grip recommended.

M98- Must have a picatinny rail and not a built in monopod.

Woox Furiosa - See picture - use the Short Dowel

Woox Furiosa Ultra - Order the Picatinny Rail to replace the wood rider - use the Short Dowel

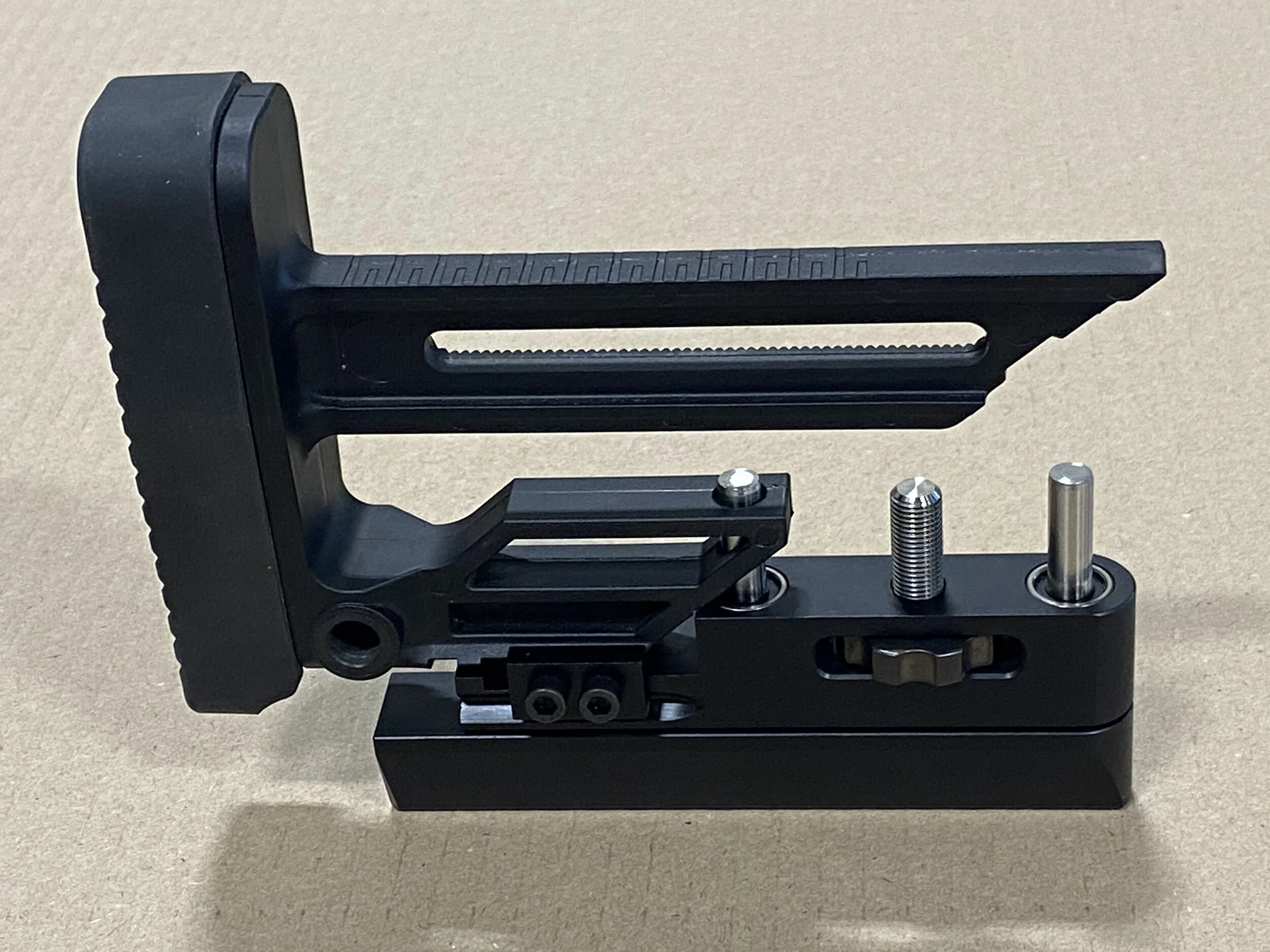

Ruger Precision Rimfire - (RPRR) - use the Short dowels (No mods required but will raise the stock .5” more than the Rail Mounted ABR (which requires minor mods). For support —> RPRR Brace

HM50MAX, HM50B2, HM50B1 - requires clearance for the stud to clear the front (rear dowel is in the hole)

KRG Bravo -See picture - use the Short Dowel. Picatinny rail from KRG needs to be attached

Woox Cobra - the Short dowels

Daniel Defense Delta 5 (carbon-fiber-reinforced polymer)- the Short dowels

B5 Systems - the Short Dowels and a Vertical grip are required

Monza - X Tactical - stock - Short Dowel

XRS - Pic Rail Required - Extra short Dowels (No Modification required) only .680” travel

Modifications Required:

XRS - Pic Rail required - Short Dowels - .95” travel-(see pic - clearance into above stock is needed for the front dowel)

Seekins Havak HIT - See the “Installs” page for details (see pic below) a Pic rail is needed

Made in the USA from American 6061-T6 alum and Black Anodized Class II

Caliber Restrictions:

• .338 and smaller calibers will use the Standard dowels

• .33XC and larger needs the Hardened Dowels

• PRS & Military use needs Hardened Dowels

Please note that this product may not fit other Rifles without modification.

Non-Affiliation Disclaimer. We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Barrett Firearms Manufacturing brands or Woox Brands .
