Tall Rail Mounted ABR
Tall Rail Mounted ABR
The Tall Rail Mounted Adjustable Bag Rider (Patented) designed to clamp to the lower picatinny rail on the MRAD, MK22, M98(newer models) and others listed below. The rear stock must look like the provided pictures. It provides the same superior functionality as the other ABRs. The ABR has about .95” of travel with the short dowels. It ships with the LSP made 2 Hole Rail Clamp (torque to 18 inch pounds -5/32” allen wrench ). A 3 Hole Rail Clamp is available.
We recommend 2.25” minimum between the front of the ABR and the back of the grip so a more vertical grip is recommended. See the LSP Precision Vertical Adjustable Grip.
See the Bag Selection page for information on the lower rider shapes (ELR or V) and how they fit a bag you may have.
A new ‘Quick adjustment’ thread option (Coarse thread) is available for PRS, Hunting - use requires Hardened Dowels
MRAD, MRADELR, MK22, M98, SMR - all use the Short Dowel
M98- Must have a picatinny rail and not a built in monopod.

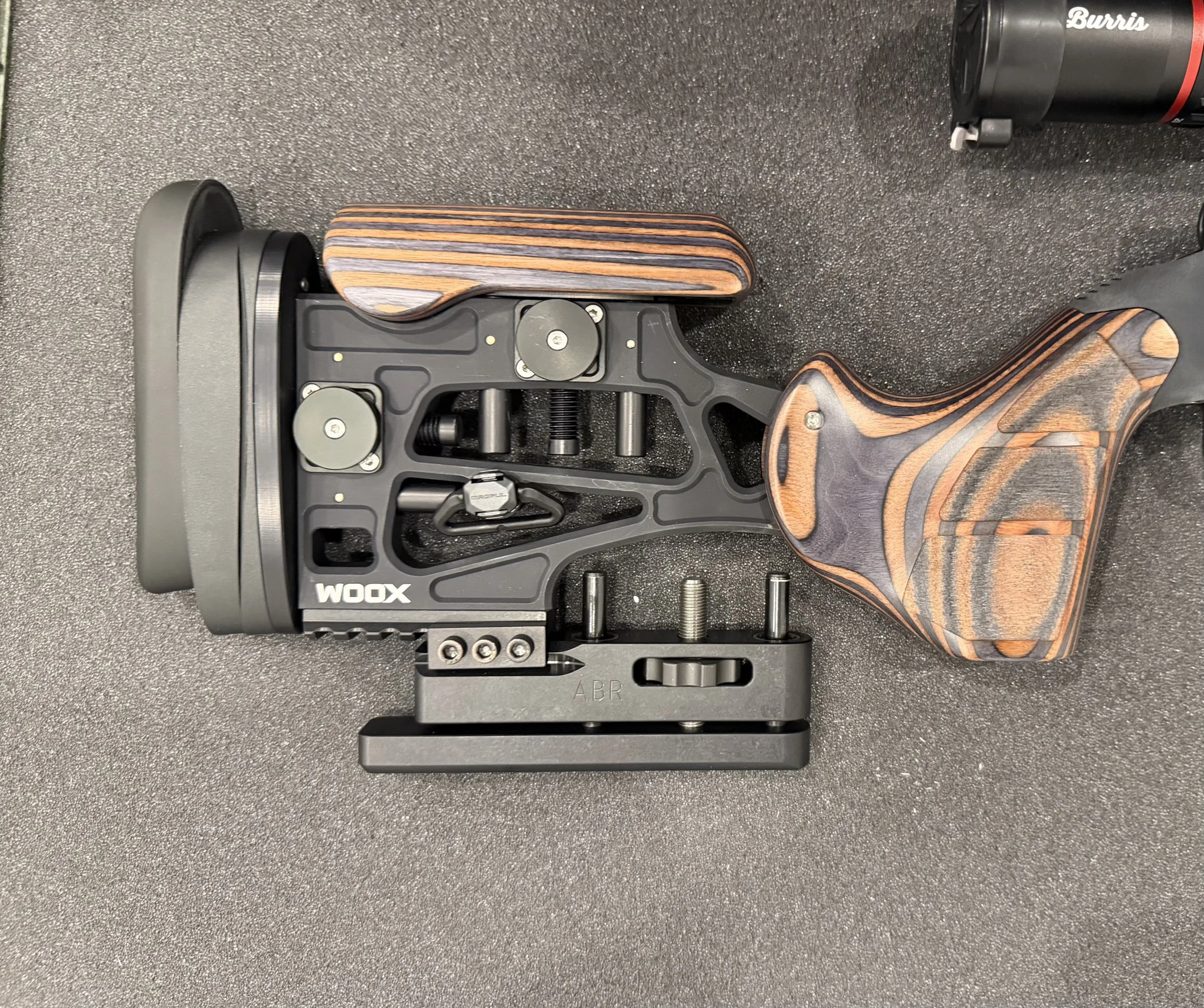

Woox Furiosa - See picture - use the Short Dowel
Woox Furiosa Ultra - Order the Picatinny Rail to replace the wood rider - use the Short Dowel
Ruger Precision Rimfire - (RPRR) - use the Short dowels (No mods required but will raise the stock .5” more than the Rail Mounted ABR (which requires mods)
KRG Bravo -See picture - use the Short Dowel. Picatinny rail from KRG needs to be attached
Woox Cobra - the Short dowels
B5 Systems - the Short Dowels and a Vertical grip are required
Monza - X Tactical - stock - Short Dowel
XRS - Pic Rail Required - Extra short Dowels (No Modification required) only 5/8” travel

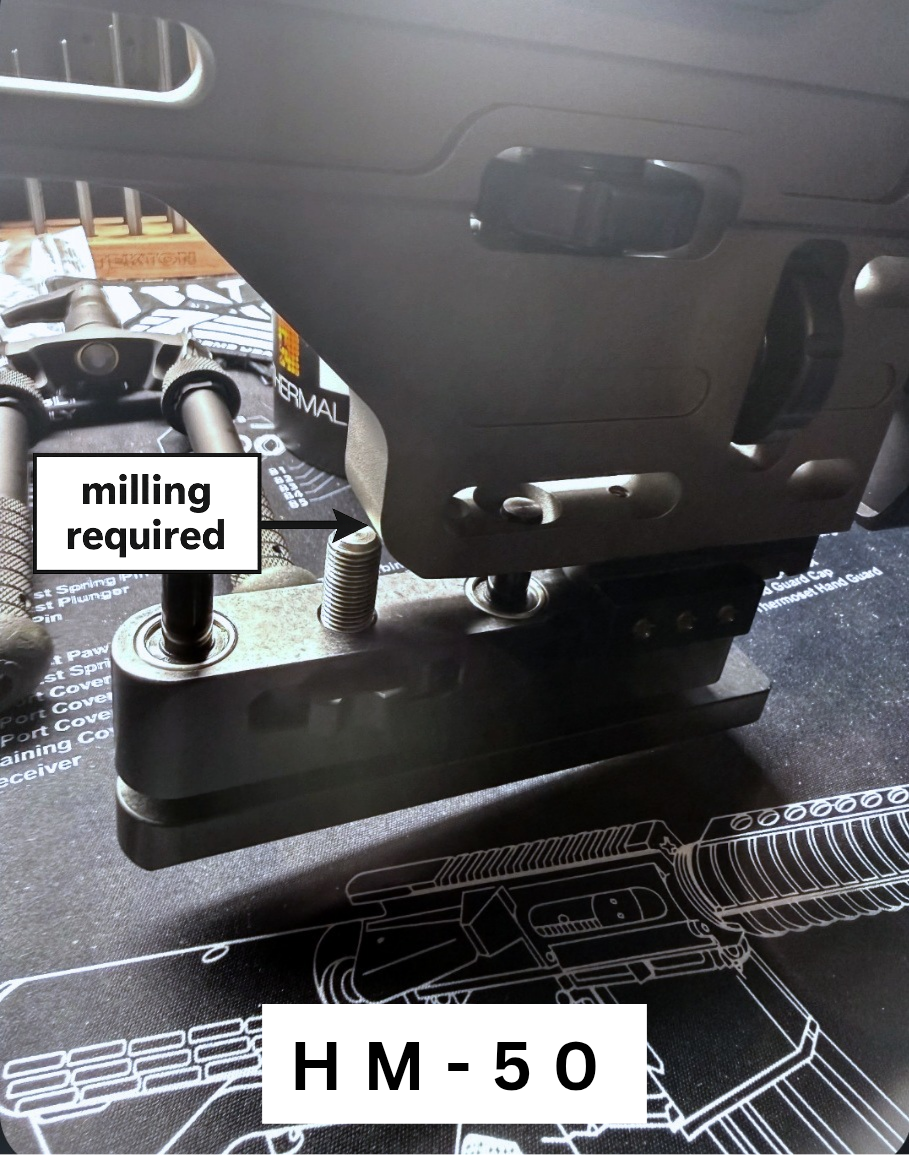

Modifications Required:
XRS - Pic Rail required - Short Dowels -(see pic - clearance into above stock is needed for the front dowel)
Seekins Havak HIT - See the “Installs” page for details (see pic below) a Pic rail is needed
Made in the USA from American 6061-T6 alum and Black Anodized Class II
Caliber Restrictions:
.338 and smaller calibers will use the Standard dowels
.33XC and larger needs the Hardened Dowels
PRS & Military use needs Hardened Dowels
Please note that this product may not fit other Rifles without modification.
Non-Affiliation Disclaimer. We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Barrett Firearms Manufacturing brands or Woox Brands .
