The Rail Mounted Adjustable Bag Rider V Bottom

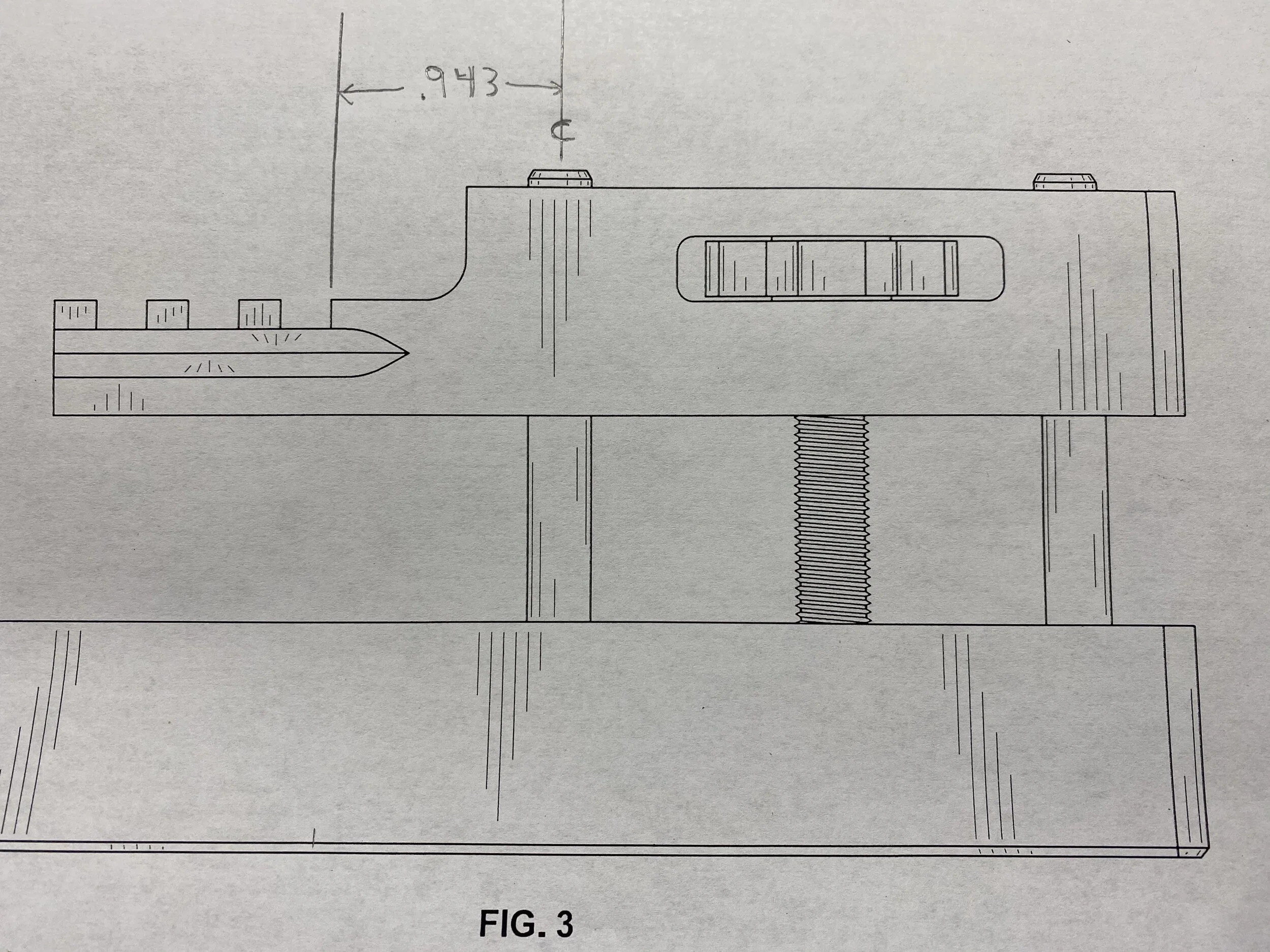

Rail Mounted Adjustable Bag Rider Measurement for Rimfire. And additional .394” can be added to the above .943” to remove the minimal amount that would touch if the next forward mounting slot is used.
The Rail Mounted ABR is a simple bolt on installation…
of a precision enhancement that can easily be installed in minutes. It's preconfigured to directly clamp onto your lower picatinny rail. The ABR is the only clamp on modification that provides vertical adjustment while providing horizontal stability without requiring positional body changes. Current angled bag riders require positional changes to the rifle or body, causing point of impact inconsistencies. Simply clamp it on (18-20 inch pounds on 2x 10-32 bolts) and your precision rifle will rivaling custom setups without the custom cost. The V bottom base is designed to fit the standard 3/8” stitch bag you may already have. The Square Round base ABR is designed to fit a bag you may have if you purchased one for the stock lower rail. The V bottom base ABR and the Square Round base ABR are the two available options. Functionality and construction are the same but the difference resides in how the shooter chooses to use it. The V bottom fits a standard 2 stitch bag. The SQR bottom has a wider base =.850” for competitive shooting in which a heavy bag might not be allowed in the competition.
Both ABRs are precision CNC made and assembled in the USA from the highest quality aluminum. A custom designed finely threaded stainless steel thumb wheel adjusts the height of the stock without the shooter having to take his or her eyes off the site picture. Simply turn the robust notched thumb wheel with your non-trigger hand. The thumb wheel is located in the most ergonomic and convenient location possible for the shooter. The height of the stock can be adjusted in micro intervals with rock solid stability. The ABR is built with 2 hardened alloy steel dowels riding in linear bearings that provide ultra-smooth consistent operation. Creep resistant Delrin thrust washers, known for their strength, are also used in the construction. We finish the ABR off with a super tough class II anodized finish and it still weighs less than 15oz with the clamp! The end result is the answer to precision shooting - period. Nothing else comes close!
