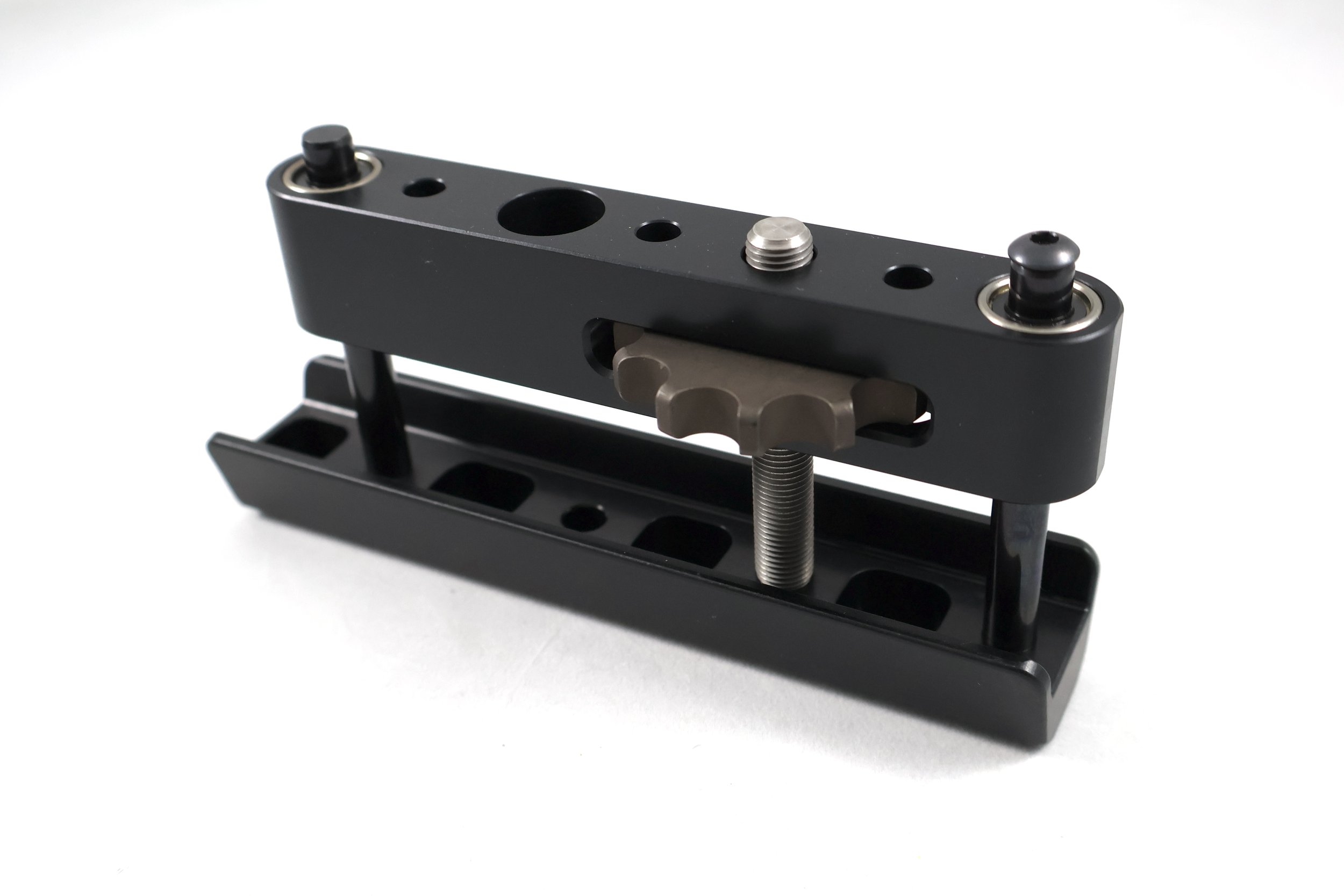

The 2 Dowel Adjustable Bag Rider is designed to be installed into a stock to reduce height being added to the rear. The 3 Dowel ABR is used but the center linear bearing and dowel are left out to reduce weight. The lower rider provided can be used as a rider or installed into a larger rider (see pic). It is provided with 2 hardened dowels and a 1.9” diameter thumb wheel. It will require milling the stock and possibly re-enforcement added to keep the stock from splitting. One dowel will have a 10/32 screw in the top that will limit the ABR™ from opening to far. The screw is installed from above after mounting of the ABR™. It provides the same superior functionality as the other ABRs while keeping the stud mostly contained in a dirt free environment. Drawing is attached in the images. If you need clearer drawing use the contact button.

ELR Bottom - is .850” wide and .5” tall (fits a bag with .625” ear spacing) 14.3oz

V bottom - is designed to fit a bag with .625” ear spacing. It’s 6” long. 14.8oz

Long Dowels - 1.5” travel (Standard). Dowels are 1.5” above when rider is up fully.

Shorter dowels and studs are available upon request (without the threaded end).

Caliber Restrictions:

• None

The ABR™ is made and assembled in America from American 6061-T6 alum and Black Anodized Class II

Please note that this product does not fit any stock without modification.
