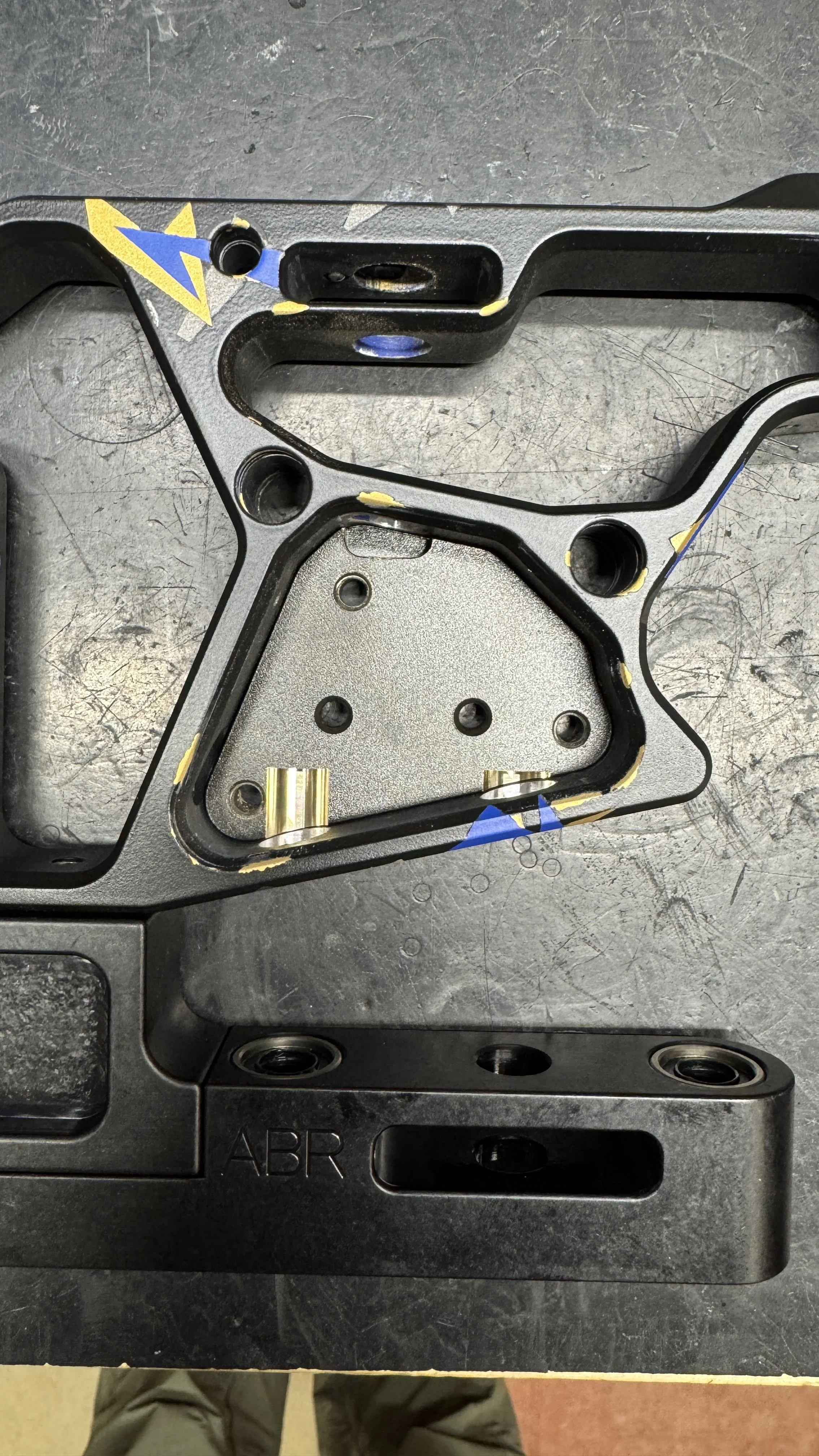

The C-6 Bracket is designed to mount directly to the XLR C-6 stock it also fits the TR2 & TAC stocks. Once the bracket is bolted on the Flat Mount ABR with the “Short” dowel option will attach to the bracket. The “Longer” dowel option will require machining to the stock for the stud and rear dowel ( see the last two images of a C6 stock). Contact us if you’d like to have the machining done by our installation guy Jim. See other installs—> Installs.

It ships with all supplied hardware for mounting. It weighs 2.6oz - bracket & bolts. Made from 6061 alum with class II anodizing (American Alum, machined and anodized in the USA)

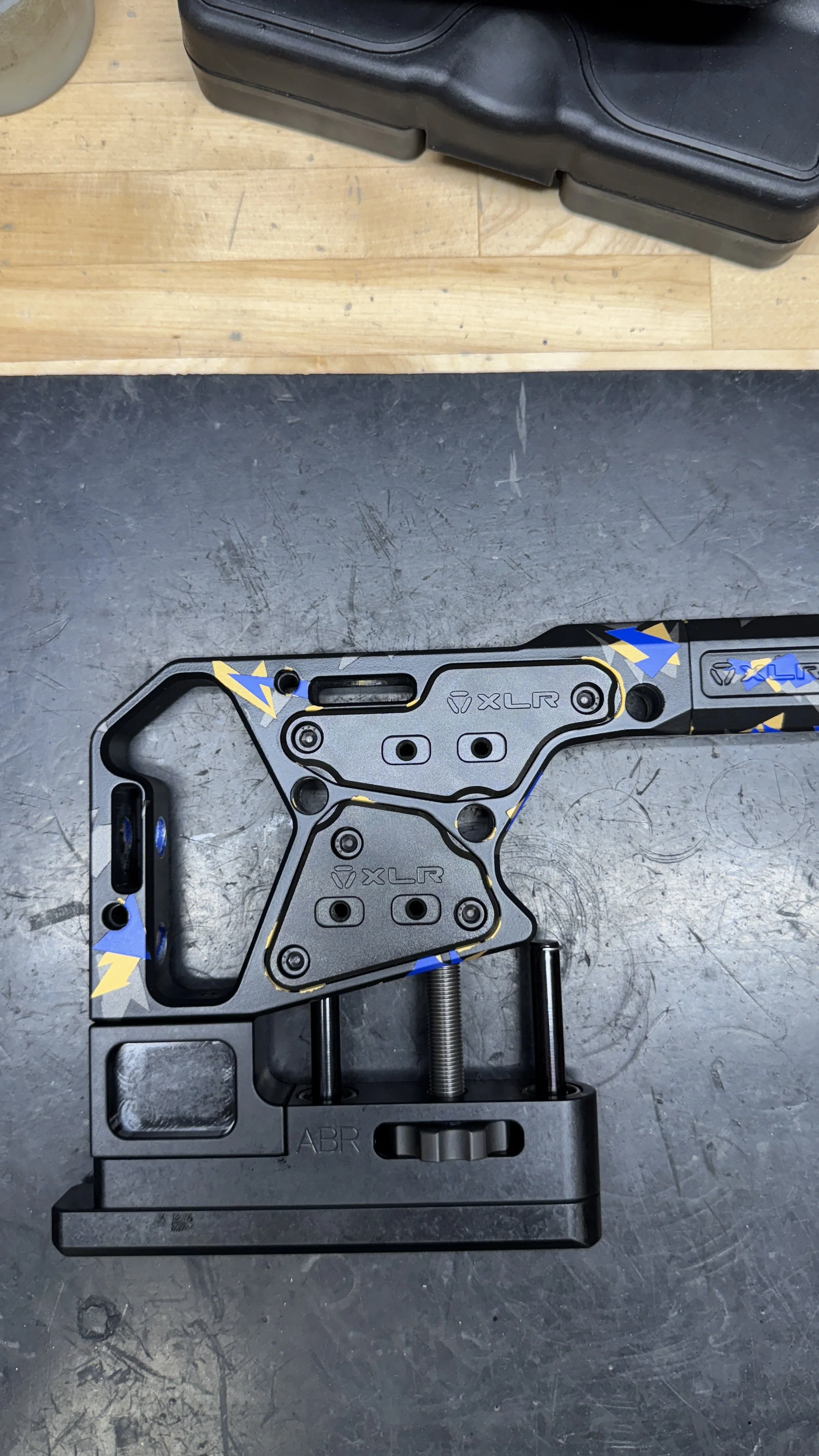

Pictures show the ‘Flat Mount ABR’ with the Short Dowels

Direct Bolt on Applications:

XLR C-6, TL2 & TAC rear stock

When mounting the bracket to the stock push the bracket forward so the recoil plate can slide down.
